Traffic Screens

Screen flow

Refer to the following schema to learn more about different interactions and how to navigate between module screens:

graph TB
    DisruptedLines(Disrupted lines) --> LineNetworkDisruptions(Line / Network disruptions)
    DisruptedLines(Disrupted lines) --> SubscribedLines(Subscribed lines)
    DisruptedLines(Disrupted lines) --> LineSelection(Line selection)
    SubscribedLines(Subscribed lines) --> LineSelection(Line selection)
    LineSelection(Line selection) --> SubscriptionSchedule(Subscription schedule)

All disruptions

The all disruptions screen allows the user to view all the line and network disruptions sorted by transport category.
When clicking on a disrupted line, the message and the application period of the disruption shows up along with an All disruptions button. This button redirects the user to the line disruptions screen.

AndroidiOS

Filters

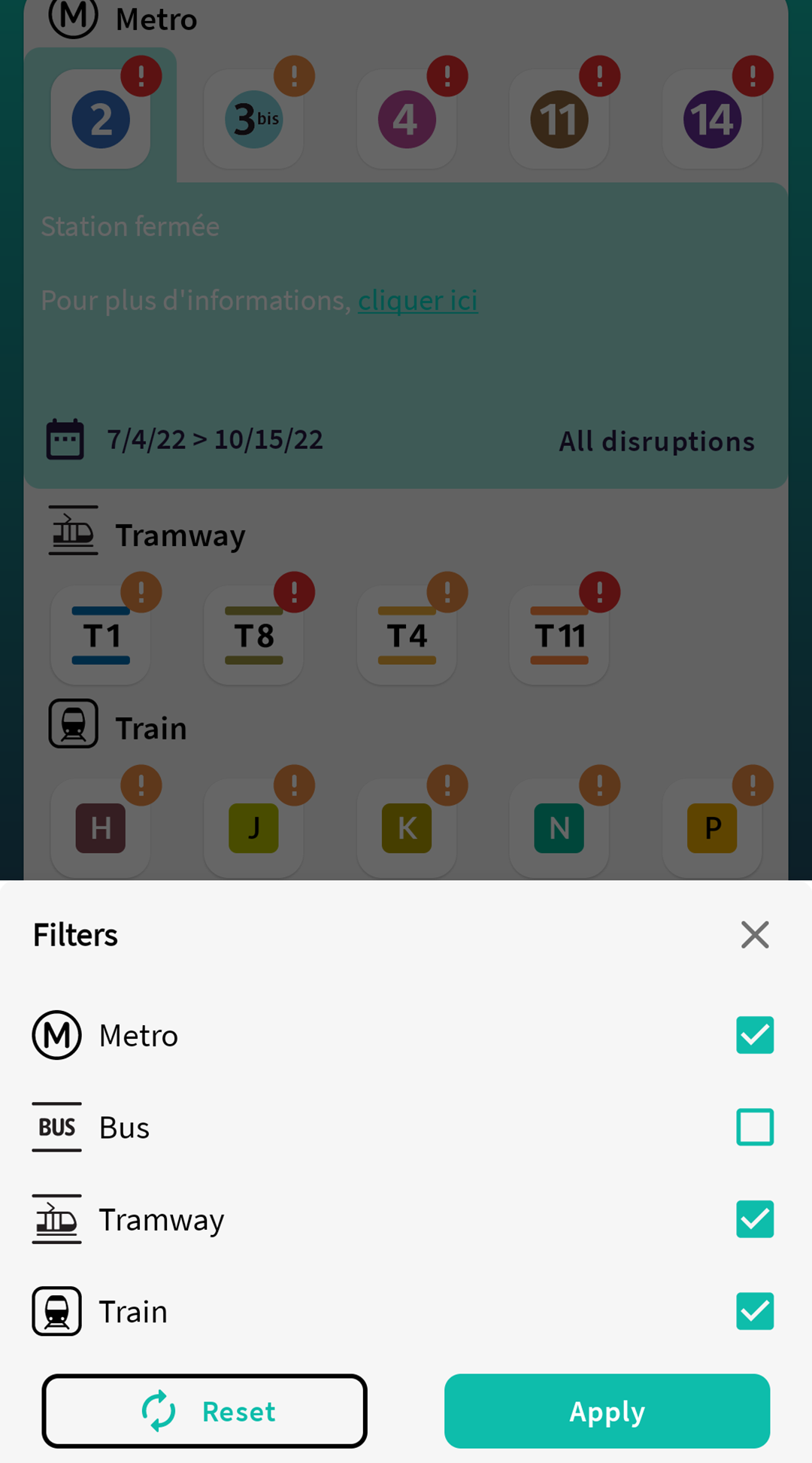

The all disruptions screen integrated a menu accessible through the header right button. This menu shows the different transport categories with a default selection.
If the user hits the Apply button after changing the selection state, the all disruptions screen will refresh and will show the disruptions according to the updated filters.

AndroidiOS

Line/network disruptions

This screen lists the disruptions related to the selected line or to all disrupted networks. Each element shows the title, the message and the application period of a target disruption.
Some disruptions have messages with included hyperlinks. Those links are also accessible to the user and will redirect him to an external browser to view the related link.

If the alert subscription feature is enabled, a bell button appears allowing the user to subscribe/unsubscribe to/from the line alerts.

AndroidiOS

Line selection

This screen includes an autocompletion that enables the user to search the transport line needed for alert subscription.
The parameter transport_networks allows to show the network providing the searched line.

AndroidiOS

Subscription schedule

After selecting a line from the autocompletion screen, this screen appears giving the ability to the user to choose/modify the periods in which the alert subscription can be received.
Please verify that you have passed valid Kronos API credentials to the module initialization method in order to ensure a successful alert subscription process.

AndroidiOS

Subscriptions list

This screen lists all the alert subscriptions that the user have registered. The subscriptions are also grouped by transport categories allowing to filter the subscriptions depending on the impacted line transport mode.

AndroidiOS
